TickTock Widget

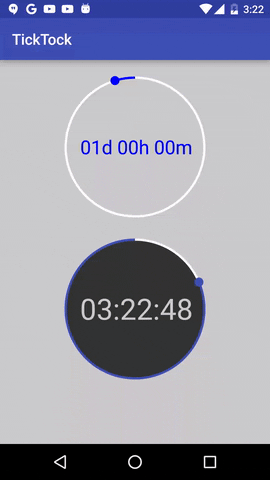

This is a circular widget that can be used to display a count down timer or a count up timer.

How to include

compile 'com.bcgdv.asia.lib:ticktock:1.3'

Usage

    <com.bcgdv.asia.lib.ticktock.TickTockView
        android:layout_width="200dp"
        android:layout_height="200dp"
        android:layout_marginTop="16dp"
        android:layout_gravity="center_horizontal"
		app:tickAutoFitText="true"
        app:tickMiddleColor="#333333"
        app:tickMoveCounterClockwise="true"
        app:tickTextColor="#CCCCCC"
        app:tickDotRadius="6dp"
        app:tickEmptyRingColor="@android:color/white"
        app:tickFillRingColor="@color/colorPrimary"
        app:tickRingThickness="3dp" />

• tickCircleDuration - minute|total_time the circle completes a full circle every minute or the total time different between startTime and endTime. Default minute.
• tickAutoFitText - boolean default true. The text will be automatically resized to fit in the available space.
• tickText - Optional String static text to display in the middle.
• tickTextColor - Optional color
• tickTextSize - Optional dimension text size if tickAutoFitText is not used.
• tickMiddleColor - Optional color the color of the center of the color. Color transparent by default.
• tickFillRingColor - Optional color the color of the ring when filled. Color white by default.
• tickEmptyRingColor - Optional color the color of the ring when empty. Color blue by default.
• tickRingThickness - Optional dimension the tickness of the ring in DIP. 3dp by default.
• tickDotRadius - Optional dimension the radious in DIP of the dot. 6dp by default.
• tickMoveCounterClockwise Optional boolean false by default.

public void onCreate(Bundle savedInstanceState) {
...
    mCountDown = (TickTockView) findViewById(R.id.view_ticktock_countdown);
    mCountUp = (TickTockView) findViewById(R.id.view_ticktock_countup);
    if (mCountDown != null) {
        mCountDown.setOnTickListener(new TickTockView.OnTickListener() {
            @Override
            public String getText(long timeRemaining) {
                int seconds = (int) (timeRemaining / 1000) % 60;
                int minutes = (int) ((timeRemaining / (1000 * 60)) % 60);
                int hours = (int) ((timeRemaining / (1000 * 60 * 60)) % 24);
                int days = (int) (timeRemaining / (1000 * 60 * 60 * 24));
                boolean hasDays = days > 0;
                return String.format("%1$02d%4$s %2$02d%5$s %3$02d%6$s",
                        hasDays ? days : hours,
                        hasDays ? hours : minutes,
                        hasDays ? minutes : seconds,
                        hasDays ? "d" : "h",
                        hasDays ? "h" : "m",
                        hasDays ? "m" : "s");
            }
        });
    }

    if (mCountUp != null) {
        mCountUp.setOnTickListener(new TickTockView.OnTickListener() {
            SimpleDateFormat format = new SimpleDateFormat("hh:mm:ss");
            Date date = new Date();
            @Override
            public String getText(long timeRemaining) {
                date.setTime(System.currentTimeMillis());
                return format.format(date);
            }
        });
    }
...
}

@Override
protected void onStart() {
    super.onStart();
    Calendar end = Calendar.getInstance();
    end.add(Calendar.MINUTE, 4);
    end.add(Calendar.SECOND, 5);

    Calendar start = Calendar.getInstance();
    start.add(Calendar.MINUTE, -1);
    if (mCountDown != null) {
        mCountDown.start(start, end);
    }

    Calendar c2= Calendar.getInstance();
    c2.add(Calendar.HOUR, 2);
    c2.set(Calendar.MINUTE, 0);
    c2.set(Calendar.SECOND, 0);
    c2.set(Calendar.MILLISECOND, 0);
    if (mCountUp != null) {
        mCountUp.start(c2);
    }
}

@Override
protected void onStop() {
    super.onStop();
    mCountDown.stop();
    mCountUp.stop();
}

Known Issues

• Please report any through GitHub issue tracker.

License

Licensed under the Apache License, Version 2.0 (the "License");
you may not use this file except in compliance with the License.
You may obtain a copy of the License at

http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software
distributed under the License is distributed on an "AS IS" BASIS,
WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
See the License for the specific language governing permissions and
limitations under the License.
